Aggregate Crushing Value Apparatus

Name: Aggregate Crushing Value Apparatus
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 65000 INR
Availability: InStock

65000 INR/Set

Get a Price/Quote

Product Details:

Power Supply Not required (hand operated)
Interface Type Manual
Response Time Immediate after manual test
Resolution As per graduation markings
Accuracy Conforms to IS: 2386 (Part IV) standards
Number of Specimens 1 per test cycle
Features Heavy plated steel construction, corrosion resistant, easy cleaning
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Aggregate Crushing Value Apparatus Price And Quantity

Price 65000 INR/Set
Minimum Order Quantity 1 Set

Aggregate Crushing Value Apparatus Product Specifications

Resolution As per graduation markings
Accuracy Conforms to IS: 2386 (Part IV) standards
Test Stroke Applicable for standard compaction stroke
Number of Specimens 1 per test cycle
Features Heavy plated steel construction, corrosion resistant, easy cleaning
Usage Aggregate testing in civil engineering laboratories
Power Supply Not required (hand operated)
Interface Type Manual
Response Time Immediate after manual test
Control Mode Manual operation
Test Width 115 mm (cylinder inside diameter)
Display Type N/A (physical observation and measurement)
Capacity Capacity for 3-kg aggregate sample
Test Range Suitable for aggregates 10 mm to 12.5 mm
Hardness Hardened steel plunger
Measuring Range 0 - 100% crushing value
Test Speed Uniform speed, hand operated
Max Height Stand Approx. 350 mm
Machine Weight Approximately 45 kg
Application Determining aggregate crushing value
Humidity Standard laboratory environment
Mounting Type Table mounted
Automation Grade Manual
Specimen Size Aggregate sample up to 10-12.5 mm
Temperature 10C - 40C

Suitable For Coarse aggregate strength assessment
Compliance IS: 2386 (IV), BS 812 standards
Finish Powder coated for rust resistance
Equipment Type Aggregate Testing Apparatus
Base Plate Diameter 200 mm
Sample Size Capacity Up to 3 kg aggregate
Standard Accessories Cylinder, plunger, base plate, tamping rod, measure
Cylinder Height 147 mm
Packing Type Wooden box for safe transport
Plunger Diameter 100 mm
Material of Construction Mild steel high-grade

Aggregate Crushing Value Apparatus Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Set Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Grab the sought-after Aggregate Crushing Value Apparatus-masterful for coarse aggregate strength assessment. Get it now and experience dazzling performance with this hand-operated, heavy-plated steel device. Designed to comply strictly with IS: 2386 (Part IV) and BS 812 standards, it offers a powder-coated, corrosion-resistant finish and is delivered in a sturdy wooden box for safe transport. Its ephemeral test process yields immediate manual results. Ideal for civil engineering labs in India and beyond, this apparatus supports up to 3 kg samples and ensures uniform, accurate crushing value results every time.

Application & Usage of Aggregate Crushing Value Apparatus

Ephemeral yet essential, the Aggregate Crushing Value Apparatus is used by civil engineering laboratories, material testing institutes, and quality assurance departments to determine the crushing strength of coarse aggregates. Its masterful design serves in road construction, concrete mix analysis, and structural engineering applications. Regularly sought-after by technicians and engineers, this device remains indispensable for ensuring the integrity and long-term durability of infrastructural projects in both public and private sectors.

Export Markets, Sample Policy & Payment Options

We cater to dazzling global markets with precise drop-off and exchange arrangements. Serving as a leading exporter, manufacturer, and supplier from India, our Aggregate Crushing Value Apparatus enjoys high demand across Asia, Africa, and the Middle East. Prompt transport services guarantee safe delivery, and samples are provided upon request with fair exchange policies. Flexible payment terms, including wire transfer and LC, ensure seamless transactions for our valued international clients.

FAQ's of Aggregate Crushing Value Apparatus:

Q: How does the Aggregate Crushing Value Apparatus work?

A: The apparatus uses a heavy-plated steel cylinder, plunger, and base plate to apply uniform compression to aggregate samples, assessing their resistance to crushing as per IS: 2386 (Part IV) standards.

Q: What is the main benefit of using this apparatus in a laboratory?

A: It provides accurate, immediate analysis of coarse aggregate strength, ensuring quality and compliance in construction projects, which is critical for structural durability and safety.

Q: Where is the Aggregate Crushing Value Apparatus typically used?

A: This equipment is extensively used in civil engineering laboratories, material testing centres, and quality control departments involved in road, concrete, and structural engineering.

Q: What is the process for conducting a crushing value test using this apparatus?

A: Aggregate is loaded into the cylinder and subjected to a standard compaction and crushing stroke with the plunger. The resultant value is manually measured using the provided accessories.

Q: When should a new test cycle be started during aggregate testing?

A: A new test cycle should be started with a fresh aggregate sample once the previous sample has been fully tested and the crushing value has been recorded.

Q: What are the suitable aggregate sizes for testing with this apparatus?

A: The apparatus is designed for testing aggregates ranging from 10 mm to 12.5 mm within a sample size up to 3 kg per test cycle.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Concrete Testing Equipment' category

Compressive Strength Testing Equipment Price : 32000 INR/Set Minimum Order Quantity : 1 Response Time : Instantaneous Usage : Industrial / Laboratory Power Supply : 230 V AC, 50 Hz Number of Specimens : 1 at a time Features : Heavy duty construction, Accurate results, User friendly Accuracy : 1% of indicated value Equipment Type : Compressive Strength Testing Machine Capacity : 2000 kN Test Range : Up to 2000 kN Control Mode : Manual / SemiAutomatic Humidity : Up to 90% RH Machine Weight : Approx. 200 kg Application : Compressive strength testing of concrete, bricks, cement, tiles, etc. Temperature : 10C to 40C Automation Grade : SemiAutomatic Mounting Type : Floor Mounted Interface Type : Manual / Digital Panel Resolution : 1 kN Hardness : High hardened platen for durability Display Type : Analog / Digital Measuring Range : 0 2000 kN Test Speed : 50 mm/min Max Height : Up to 600 mm Specimen Size : 150 mm x 150 mm x 150 mm (Standard) or as per requirement Frequency : 50 Hz Port Size : Standard 1/4 BSP Test Stroke : 0100 mm Test Width : 150 mm Operating Voltage : 230 V AC

Send Inquiry

in situ shear test apparatus Price : 60000 INR/Set Minimum Order Quantity : 1 Response Time : < 2 seconds Usage : Civil Engineering Field Test Power Supply : 220V AC, 50Hz Number of Specimens : Single specimen per test Features : Portable, Rugged construction, Direct field use Accuracy : 1% Equipment Type : In Situ Shear Test Apparatus Capacity : 200 kN Test Range : 0200 kN Control Mode : Manual/Automatic Control Humidity : Up to 95% RH (noncondensing) Machine Weight : Approx. 120 kg Application : Shear strength testing of soil and rock in the field Temperature : Ambient to 50C Automation Grade : SemiAutomatic Mounting Type : Ground/foundation mounted Interface Type : RS232 / USB (optional for data logging) Resolution : 0.01 kN Display Type : Digital Load Indicator Measuring Range : 0200 kN Test Speed : 0.05 2.0 mm/min (variable) Max Height : Approx. 800 mm including jacks Specimen Size : 300 mm 300 mm 200 mm (standard block) Frequency : 50 Hz Port Size : Standard 1/2 inch BSP Test Stroke : 050 mm Test Width : Up to 300 mm Operating Voltage : 220V AC

Send Inquiry

Relative Density Test Price : 7000 INR/Set Minimum Order Quantity : 1 Response Time : Quick Usage : Geotechnical Laboratory Test Power Supply : 230V AC, 50Hz Number of Specimens : Single or Multiple as per Standard Features : High Precision, Corrosion Resistant, Portable Accuracy : 1% Equipment Type : Laboratory Testing Equipment Capacity : As per requirement Test Range : Up to 100% Control Mode : Automatic / Manual Humidity : Relative, up to 90% Machine Weight : 65 kg (approx.) Application : Relative Density Test / Soil Testing Temperature : Ambient to 50C Automation Grade : SemiAutomatic Mounting Type : Bench Top Interface Type : Manual / Digital Resolution : 0.01% Hardness : Industrial Grade Display Type : Digital / Analog Measuring Range : Up to 100% Test Speed : 60 2 rpm Max Height : Customizable Specimen Size : Standard / as per IS standard Frequency : 50 Hz Port Size : Standard Operating Voltage : 230V, 50Hz

Send Inquiry

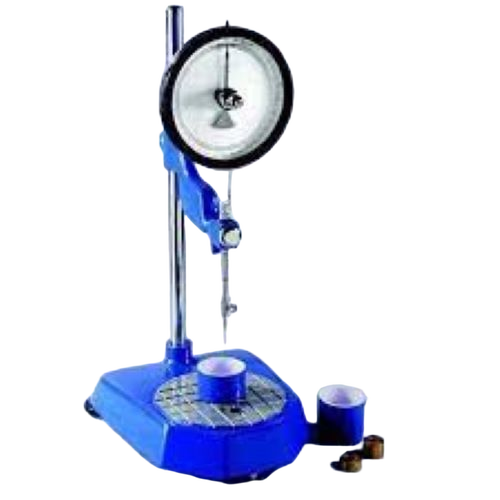

Cone Penetrometer for Morta Price : 9000 INR/Set Minimum Order Quantity : 1 Response Time : Immediate (manual reading) Usage : Lab use for mortar consistency Power Supply : Not required (manual) Number of Specimens : Single specimen (per test) Features : Simple operation, sturdy metal base, precise graduated scale Accuracy : 0.1 mm Equipment Type : Cone Penetrometer for Morta Capacity : Up to 50 mm cone penetration Test Range : 050 mm penetration Control Mode : Manual Humidity : Ambient Machine Weight : 8 kg (approx.) Application : Determination of consistency of fresh mortar Temperature : Room temperature Automation Grade : Manual Mounting Type : Benchmounted Interface Type : Manual operation Resolution : 0.1 mm Hardness : Standard brass/steel cone Display Type : Graduated scale Measuring Range : 050 mm Test Speed : Standard manual operation Max Height : 300 mm Specimen Size : Mortar sample, standard size as per IS: 2250 Test Stroke : Penetration up to 50 mm Test Width : 120 mm
