Centrifuge Extractor (Motorized)

Name: Centrifuge Extractor (Motorized)
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 65000 INR
Availability: InStock

65000 INR/Set

Get a Price/Quote

Product Details:

Interface Type Manual operation with electrical motor
Number of Specimens 1 per test
Equipment Type Centrifuge Extractor (Motorized)
Humidity Up to 85% RH (non-condensing)
Temperature Operating 5C to 40C
Mounting Type Benchtop
Accuracy 0.1%
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Centrifuge Extractor (Motorized) Price And Quantity

Price 65000 INR/Set
Minimum Order Quantity 1 Set

Centrifuge Extractor (Motorized) Product Specifications

Humidity Up to 85% RH (non-condensing)
Power Supply 220V AC, 50 Hz
Display Type Analog gauge
Operating Voltage 220V AC
Capacity 1500 g or 3000 g
Machine Weight Approximately 45 kg
Test Speed Up to 3600 rpm
Usage Laboratory test for bitumen extraction
Accuracy 0.1%
Measuring Range 0 - 100% bitumen content
Mounting Type Benchtop
Control Mode Motorized with push button and lock system
Frequency 50 Hz
Temperature Operating 5C to 40C
Automation Grade Semi-Automatic
Response Time Immediate, as per test process
Number of Specimens 1 per test
Features Removable bowl, safety cover, easy operation, solvent resistant
Application Determination of bitumen content in bituminous mixtures
Max Height Approx. 350 mm
Resolution 0.01%
Specimen Size 1500 g or 3000 g of mixture
Interface Type Manual operation with electrical motor
Equipment Type Centrifuge Extractor (Motorized)

Discharge Valve Provided for solvent drainage
Safety Features Interlock cover switch, vibration free mounting
Solvent Compatibility Compatible with trichloroethylene, benzene, carbon tetrachloride, etc.
Material of Construction Stainless steel centrifuge bowl and housing
Finish Powder coated corrosion resistant body
Drive Mechanism Belt driven by heavy-duty electric motor
Bowl Size Diameter 275 mm approx.
Noise Level Less than 70 dB

Centrifuge Extractor (Motorized) Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Set Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Centrifuge Extractor, Electrical Operation, Capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply Used for the determination of bitumen percentage in bituminous mixtures. It consists of a removable, precision machined aluminum or bowl (accessory 1500 or 3000 g capacity), housed in a cylindrical aluminum box. The separate control panel

incorporates an electronic card fitted with AC drive that automatically drives the bowl speed rotation ramp from 0 to 3600 R.P.M. as requested by Standards, with automatic fast stop bowl rotation at the end of the test Supplied complete with speed regulator and digital display monitoring the frequency. Power supply: 230 V A.C. Single Phase.

Exceptional Bitumen Extraction Precision

Engineered for laboratory testing, the motorized Centrifuge Extractor delivers accurate bitumen content measurements in various bituminous mixtures. With a measuring range of 0-100% and accuracy of 0.1%, it supports quality control in material assessment and ensures compliance with test standards. Its immediate response time and analog display facilitate quick, reliable results.

Robust Stainless Steel Construction for Durability

The stainless steel bowl and housing, paired with a powder-coated, corrosion-resistant exterior, assure a long service life even with exposure to harsh solvents like trichloroethylene and benzene. The removable bowl and solvent-resistant design allow for frequent testing and easy maintenance, making it suitable for high-demand laboratory environments.

Enhanced Safety and User-Friendly Operation

Built with user safety in mind, the Centrifuge Extractor includes an interlock cover switch and vibration-free mounting. The intuitive push-button control and locking system streamline the process, reducing operator fatigue. Additionally, the benchtop design and low-noise operation (less than 70 dB) ensure compatibility with standard laboratory setups.

FAQ's of Centrifuge Extractor (Motorized):

Q: How does the Centrifuge Extractor (Motorized) determine bitumen content in samples?

A: Bitumen content is determined by placing a weighed sample of bituminous mixture (up to 3000 g) into the stainless steel bowl, adding a compatible solvent, and activating the motorized centrifuge. The device separates bitumen from aggregate via centrifugal force; the amount extracted is measured immediately with the analog gauge.

Q: What safety features are included in the Centrifuge Extractor for operator protection?

A: Safety is ensured with an interlock cover switch that prevents operation when open, vibration-free mounting to stabilize the unit, a corrosion-resistant body, and a benchtop design which minimizes risk during use. These features help maintain a safe laboratory environment during bitumen extraction.

Q: When should the removable bowl and discharge valve be utilized during the test process?

A: The removable bowl allows for easy specimen placement and cleaning following each test. The discharge valve is used to safely drain solvents after each extraction cycle, maintaining clean and efficient operation while reducing residue buildup and simplifying solvent recovery.

Q: What types of solvents can be safely used with this extractor?

A: This device is compatible with trichloroethylene, benzene, carbon tetrachloride, and other similar solvents, thanks to its stainless steel construction and solvent-resistant features, ensuring durability and reliable performance throughout regular laboratory use.

Q: Where is the ideal application for this Centrifuge Extractor (Motorized)?

A: The extractor is best suited for laboratory environments evaluating bituminous mixtures, such as quality control labs in asphalt production facilities, civil engineering research centers, and material testing laboratories in India and abroad.

Q: What are the operational limits regarding sample size, temperature, and humidity?

A: The extractor efficiently handles samples of 1500 g or 3000 g, operates within a temperature range of 5C to 40C, and maintains performance up to 85% relative humidity (non-condensing), making it adaptable for various laboratory conditions.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Concrete Testing Equipment' category

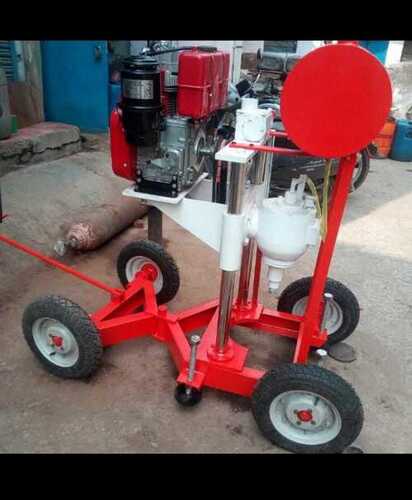

core cutting drilling machine Price : 65000 INR/Set Minimum Order Quantity : 1 Control Mode : Manual/Handheld Mounting Type : Portable with base plate Accuracy : 1 mm Usage : Onsite Core Extraction Temperature : 5C to 40C Humidity : Up to 90% RH Machine Weight : 95 kg Equipment Type : Core Cutting Drilling Machine Number of Specimens : Single Core at a Time Measuring Range : Up to 200 mm Diameter Cores Response Time : Instant Drilling Response Automation Grade : SemiAutomatic Display Type : No Digital Display Test Range : Concrete, RCC, Brickwork Resolution : 1 mm Application : Concrete Core Drilling Features : Sturdy Handle, Water Flow Connection, Portable Base, Vertical/Horizontal Drilling Power Supply : 230V AC, 50 Hz Specimen Size : Core Diameter 25 mm to 200 mm Capacity : 1500 W Muted Motor Interface Type : Mechanical Frequency : 50 Hz Test Speed : 100500 RPM Variable Hardness : Suitable for Hard Concrete/RCC Max Height : Up to 600 mm Core Height Test Width : Up to 170 mm Port Size : 1 Inch Water Inlet Operating Voltage : 230V Single Phase Test Stroke : Up to 600 mm
