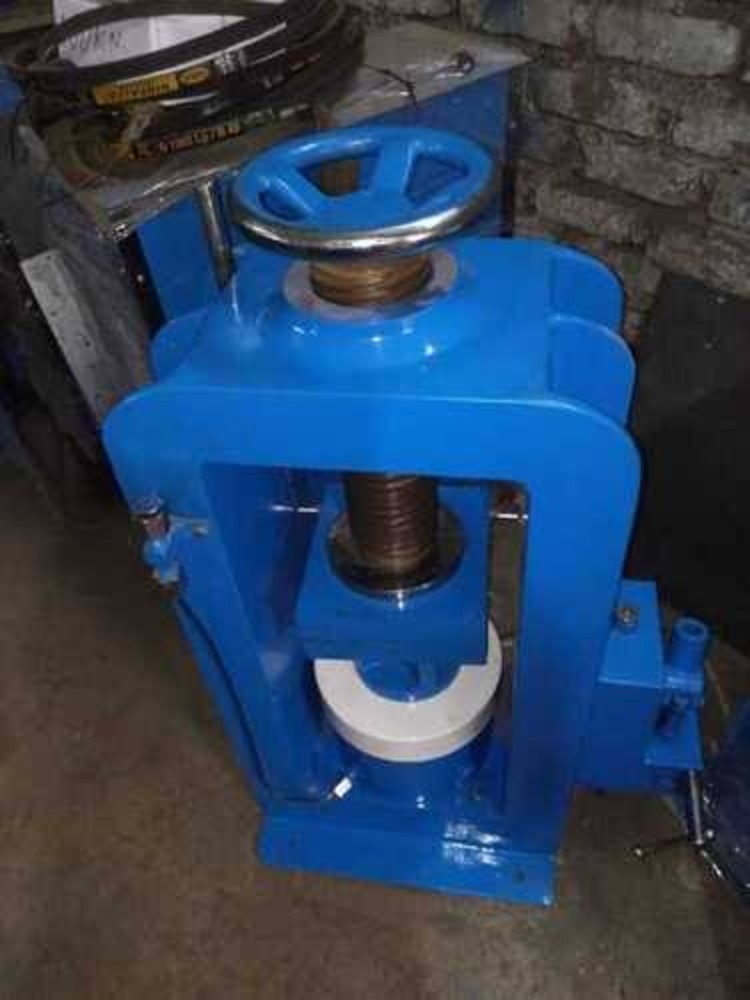

Ctm Compression Testing Machine

Name: Ctm Compression Testing Machine
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ctm Compression Testing Machine Specification

Number of Specimens
Single specimen at a time

Accuracy
1% of indicated load

Port Size
Standard as per model

Application
Compression strength testing of concrete, bricks, blocks, cement, and other construction materials

Display Type
Digital LCD with keypad controls

Specimen Size
150 mm x 150 mm x 150 mm cube or 150 mm diameter x 300 mm cylinder

Test Range
0 - 2000 kN (can vary by model)

Hardness
High strength steel construction

Features
Microprocessor based control, Auto Calibration, Data storage, Overload protection

Equipment Type
Digital Compression Testing Machine

Humidity
10% - 85% RH (non-condensing)

Resolution
0.1 kN

Temperature
10C - 40C operating

Measuring Range
0 - 2000 kN

Interface Type
RS232 or USB (on advanced models)

Automation Grade
Semi Automatic / Automatic

Mounting Type
Floor Mounted

Power Supply
220 V AC, 50 Hz, Single Phase

Max Height
Approx. 1000 mm

Response Time
Instantaneous digital readout

Operating Voltage
220 V AC, 50 Hz

Frequency
50 Hz

Usage
Material strength evaluation in laboratories and construction sites

Capacity
1000 kN, 2000 kN or as specified

Machine Weight
Approx. 250-350 kg

Test Speed
0.5 - 5 mm/min (variable)

Test Width
150 - 200 mm

Test Stroke
Up to 70 mm

Control Mode
Automatic / Manual

Memory Storage
Can store multiple test values

Hydraulic System
Yes - with ergonomic hand pump or motorized option

Calibration
Digital auto-calibration system

Finish
Powder coated corrosion-resistant body

Chamber Door Type
Heavy-duty reinforced door for operator safety

Safety Features
Overload safety system, Emergency stop switch

Pump Type
Double Plunger Pump

Noise Level
< 65 dB

Software Support
Optional PC connectivity & report generation

About Ctm Compression Testing Machine

A Compression Testing Machine (CTM) is a laboratory testing machine used to determine the compressive strength of materials, especially concrete, bricks, blocks, and other construction materials.

The specimen is placed between two compression plates, and a gradually increasing compressive load is applied until the specimen fails. The maximum load at failure is recorded and used to calculate compressive strength.

Advanced Hydraulic System and Control

The CTM Compression Testing Machine boasts a double plunger hydraulic pump, available in either hand-operated or motorized variants, tailored for user preference and application demands. Both automatic and manual control modes allow fine adjustment of test speed and test force. Its microprocessor-based system ensures accurate, repeatable results, making the unit versatile for both routine and advanced material strength assessments.

Unmatched Safety and Durability

Engineered with high-strength steel construction and a powder-coated, corrosion-resistant finish, this machine emphasizes safety and longevity. The heavy-duty chamber door, overload safety system, and emergency stop switch collectively prioritize operator protection during high-intensity tests. Low noise levels (<65 dB) and a stable floor-mounted design further enhance safe laboratory and onsite operation.

Smart Features for Modern Testing Requirements

The machine includes a digital auto-calibration system, instantaneous digital LCD readout, and can store multiple test values for later analysis. Optional software and PC connectivity (via RS232 or USB on advanced models) support comprehensive data management and report generation, meeting the evolving needs of quality control in contemporary construction and laboratory environments.

FAQ's of Ctm Compression Testing Machine:

Q: How does the CTM Compression Testing Machine ensure operator safety during tests?

A: Operator safety is prioritized with integrated features such as a heavy-duty reinforced chamber door, an overload safety system that prevents excessive force, and an emergency stop switch for immediate shutdown in critical situations.

Q: What materials and specimen sizes can be tested with this machine?

A: The CTM is designed for compression strength testing of concrete, bricks, blocks, cement, and other construction materials. It accommodates specimens of 150 mm x 150 mm x 150 mm cubes or 150 mm diameter x 300 mm cylinders, making it versatile for various applications.

Q: When should digital auto-calibration be performed on the machine?

A: Digital auto-calibration is recommended regularly before starting new test series or whenever high accuracy is required, ensuring that measurements remain within the machine's specified 1% accuracy range.

Q: Where can this compression testing machine be used?

A: This machine is suitable for both laboratory and construction site environments due to its robust build, floor-mounting design, and stable performance in ambient conditions between 10C - 40C and humidity up to 85% RH (non-condensing).

Q: What is the process for storing and retrieving test values on the CTM machine?

A: The machine's digital memory allows users to store multiple test values during operation. These can be reviewed directly on the LCD screen or, with the optional PC connectivity, exported for report generation and detailed analysis.

Q: How does microprocessor-based control benefit the testing process?

A: Microprocessor-based control delivers precise, repeatable load application, instant response, and automated calibration, which together enhance test accuracy, speed, and ease of operation.

Q: What are the benefits of optional PC connectivity and report generation?

A: Optional PC connectivity (RS232/USB in advanced models) simplifies data management, allowing users to transfer results for comprehensive report generation, trend analysis, and archival, streamlining quality assurance processes.
