ring and ball apparatus

Name: ring and ball apparatus
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 65000 INR
Availability: InStock

65000 INR/Set

Get a Price/Quote

Product Details:

Mounting Type Table-top
Power Supply 230V AC, 50 Hz
Test Range Ring and Ball Softening Point
Measuring Range 30C to 150C
Features Includes two brass rings, two steel balls, ball guides, support frame, beaker, thermometer slot
Frequency 50 Hz
Equipment Type Ring and Ball Apparatus
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

ring and ball apparatus Price And Quantity

Minimum Order Quantity 1 Set
Price 65000 INR/Set

ring and ball apparatus Product Specifications

Capacity 2 Sample Rings
Power Supply 230V AC, 50 Hz
Mounting Type Table-top
Test Speed Manual
Test Range Ring and Ball Softening Point
Measuring Range 30C to 150C
Features Includes two brass rings, two steel balls, ball guides, support frame, beaker, thermometer slot
Frequency 50 Hz
Resolution 1C
Temperature Up to 150C (with graduation 1C)
Equipment Type Ring and Ball Apparatus
Test Width Standard Ball Diameter
Usage Laboratory Testing
Operating Voltage 230V AC
Display Type Analog Thermometer
Application Determining softening point of bitumen, resins, waxes, tars, etc.
Specimen Size Rings: 17 mm ID x 6 mm high
Max Height Approx. 250 mm (with beaker mounted)
Humidity Ambient
Number of Specimens 2 (Simultaneous Testing)
Accuracy 0.5C
Response Time Immediate (as per thermometer)
Machine Weight Approx. 7 kg
Automation Grade Manual
Control Mode Manual Temperature Control

Heating Method External burner or electric heater can be used
Standard Conformance IS 1205 / ASTM D36 / IP 58
Test Medium Distilled Water (up to 80C), Glycerin (above 80C)
Ring Dimensions 17 mm internal diameter, 6 mm depth
Beaker Capacity 600 ml
Thermometer Range 0C to 200C / 1C Graduation
Material of Rings and Balls Brass (Rings), Steel (Balls)
Ball Diameter 9.5 mm
Safety Features Heat resistant beaker, removable parts for easy cleaning
Accessories Supplied Beaker, Support frame, Ring stand, Ball guides, Thermometer, Rings, Steel balls

ring and ball apparatus Trade Information

Supply Ability 10 Set Per Month
Delivery Time 5-7 Days

Product Description

Procure the latest Ring and Ball Apparatus, a redoubtable addition to your laboratory testing instruments. Designed for accuracy and reliability, this towering apparatus is constructed with marvelous brass rings and robust steel balls, ensuring lasting performance. With a 600 ml beaker capacity and compliance to IS 1205, ASTM D36, and IP 58 standards, it's ideal for determining the softening point of bitumen, resins, waxes, and tars. Purchase includes essential accessories and safety features like a heat resistant beaker, removable parts for easy maintenance, and precise manual temperature control. A premier choice for exporters, manufacturers, and suppliers in India.

Competitive Advantages & Application Areas

The Ring and Ball Apparatus commands market prominence with its impressive accuracy (0.5C) and versatile application across bitumen, resin, wax, and tar testing. Its dual specimen testing enhances efficiency, making it marvelous for high-throughput laboratories. Ideal for surface testing in civil engineering, petrochemical, and manufacturing sectors, the apparatus delivers robust results with every use. Its sturdy build and compliance to major standards provide confidence and reliability for laboratories seeking a redoubtable testing solution.

Packaging, Sample Policy & Market Handover Details

We offer secure packaging to preserve the marvelous market value of every Ring and Ball Apparatus dispatched. Sample units are available on request, aiding customers in estimating suitability before commitment. Each sample handover follows strict quality checks, and our policy ensures transparency and support for prospective clients. This approach guarantees that your procurement process remains seamless from inquiry to installation, maintaining the highest trader-exporter standards and upholding the lasting market reputation throughout India.

FAQ's of ring and ball apparatus:

Q: How does the Ring and Ball Apparatus determine the softening point of materials?

A: The apparatus measures the softening point by gradually heating bitumen, resin, tar, or wax specimens placed in brass rings, using either water or glycerin as the test medium. Steel balls are placed on top, and as the material softens, the balls drop a predetermined distance, indicating the precise softening temperature.

Q: What materials are compatible with the Ring and Ball Apparatus for testing?

A: This apparatus is suitable for testing bitumen, resins, waxes, tars, and similar thermoplastic materials that require softening point analysis, making it highly versatile in chemical and industrial laboratories.

Q: When is it necessary to switch test mediums inside the beaker?

A: Use distilled water as the test medium up to 80C. For temperatures above 80C, switch to glycerin to ensure accurate heat transfer and prevent overheating during tests, as per standard procedures.

Q: Where can the Ring and Ball Apparatus be deployed for optimal usage?

A: This table-top equipment is ideally used in laboratory environments, including civil engineering labs, asphalt research centers, and production quality control departments focused on materials testing.

Q: What benefits does this apparatus provide over alternative softening point testers?

A: It offers simultaneous dual-specimen testing, exceptional accuracy, ease of cleaning with removable parts, and compliance with global standards, making it a preferred choice for laboratories aiming for precise and repeatable results.

Q: How easy is it to clean and maintain the apparatus after tests?

A: The apparatus features removable components such as rings, ball guides, and the beaker, which facilitate quick cleaning and maintenance after each testing session, ensuring longevity and consistent performance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Concrete Testing Equipment' category

Length Comparator Price : 4000 INR/Set Minimum Order Quantity : 1 Application : Comparative measurement of length, calibration of slip gauges and precision components Automation Grade : Manual Features : Rigid base, Interchangeable anvils, Fine adjustment mechanism, High stability Temperature : 1540C (Operating range) Usage : Precision length comparison and calibration Machine Weight : Approx. 60 kg Control Mode : Manual and Dial Gauge Measuring Range : 050 mm Mounting Type : Benchtop Power Supply : 230 V AC, 50 Hz Equipment Type : Precision Measuring Instrument Resolution : 0.001 mm (with dial gauge) Interface Type : Manual Display Type : Analog (Dial Gauge) Response Time : Instantaneous/manual reading Accuracy : 0.001 mm Number of Specimens : Up to 3 at a time Humidity : 85% RH (Operating environment) Specimen Size : 25 mm x 25 mm x 150 mm (typical) Test Speed : Standard/Manual (Varies with operation) Test Range : 050 mm Frequency : 50 Hz Operating Voltage : 230 V AC Test Width : 100 mm Max Height : ~200 mm (specimen) Test Stroke : Range: 0 50 mm

Send Inquiry

Aggregate Crushing Value Apparatus Price : 65000 INR/Set Minimum Order Quantity : 1 Application : Determining aggregate crushing value Automation Grade : Manual Features : Heavy plated steel construction, corrosion resistant, easy cleaning Temperature : 10C 40C Usage : Aggregate testing in civil engineering laboratories Machine Weight : Approximately 45 kg Control Mode : Manual operation Measuring Range : 0 100% crushing value Mounting Type : Table mounted Power Supply : Not required (hand operated) Resolution : As per graduation markings Interface Type : Manual Display Type : N/A (physical observation and measurement) Response Time : Immediate after manual test Accuracy : Conforms to IS: 2386 (Part IV) standards Number of Specimens : 1 per test cycle Humidity : Standard laboratory environment Specimen Size : Aggregate sample up to 1012.5 mm Test Speed : Uniform speed, hand operated Test Range : Suitable for aggregates 10 mm to 12.5 mm Capacity : Capacity for 3kg aggregate sample Test Width : 115 mm (cylinder inside diameter) Max Height : Stand Approx. 350 mm Test Stroke : Applicable for standard compaction stroke

Send Inquiry

Weighing Balance Price : 65000 INR/Set Minimum Order Quantity : 1 Application : Weighing, Laboratory, Industrial use Automation Grade : SemiAutomatic Features : Overload Protection, Auto Calibration, Tare Function Temperature : 0C to 40C Usage : Laboratory, Industrial, Pharmacy Machine Weight : Approx. 5 kg Control Mode : Manual Measuring Range : 0.01 g to 600 g Mounting Type : Table Top Power Supply : 230V AC, 50Hz Equipment Type : Weighing Balance Resolution : 0.01 g Interface Type : RS232 (Optional) Display Type : Digital LCD Display Response Time : 2 seconds Accuracy : 0.01 g Number of Specimens : 1 Humidity : 10% to 85% RH (noncondensing) Capacity : 600 g Frequency : 50Hz Operating Voltage : 230V AC

Send Inquiry

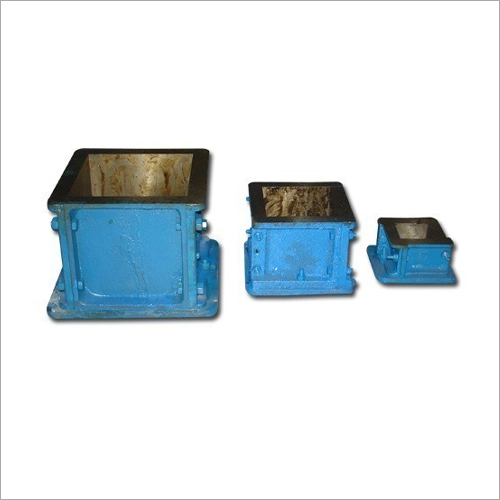

Cube Moulds Price : 950 INR/Piece Minimum Order Quantity : 1 Application : Industrial Temperature : 1 100 Celsius (oC) Usage : Industrial Machine Weight : 1 1000 Kilograms (kg) Control Mode : Semi Automatic Specimen Size : 150 Millimeter (mm)
