Cone Penetrometer for Morta

Name: Cone Penetrometer for Morta
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 9000 INR
Availability: InStock

9000 INR/Set

Get a Price/Quote

Product Details:

Power Supply Not required (manual)
Automation Grade Manual
Test Range 0-50 mm penetration
Accuracy 0.1 mm
Equipment Type Cone Penetrometer for Morta
Temperature Room temperature
Mounting Type Bench-mounted
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Cone Penetrometer for Morta Price And Quantity

Minimum Order Quantity 1 Set
Price 9000 INR/Set

Cone Penetrometer for Morta Product Specifications

Humidity Ambient
Max Height 300 mm
Response Time Immediate (manual reading)
Resolution 0.1 mm
Hardness Standard brass/steel cone
Display Type Graduated scale
Usage Lab use for mortar consistency
Number of Specimens Single specimen (per test)
Application Determination of consistency of fresh mortar
Features Simple operation, sturdy metal base, precise graduated scale
Interface Type Manual operation
Test Stroke Penetration up to 50 mm
Specimen Size Mortar sample, standard size as per IS: 2250
Equipment Type Cone Penetrometer for Morta
Control Mode Manual
Accuracy 0.1 mm
Measuring Range 0-50 mm
Mounting Type Bench-mounted
Temperature Room temperature
Test Speed Standard manual operation
Capacity Up to 50 mm cone penetration
Machine Weight 8 kg (approx.)
Test Range 0-50 mm penetration
Automation Grade Manual
Test Width 120 mm
Power Supply Not required (manual)

Finish Powder-coated base
Cone Material Polished brass or steel
Base Plate Material Cast iron
Cone Weight 300 gm (approx.)
Adjustment Mechanism Screw and knob for fine adjustment
Cone Angle 30 degrees

Cone Penetrometer for Morta Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Set Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Experience prime precision with our Cone Penetrometer for Morta, featuring a marvelously polished brass or steel 30 cone (300 gm approx.) and a robust, powder-coated cast iron base. Perfect for mortar consistency testing up to 50 mm penetration, this kingly equipment boasts a simple screw and knob for fine adjustment and a precise graduated scale with 0.1 mm resolution. Designed for single specimen use as per IS: 2250, its sturdy, manual bench-mounted build ensures reliability. Avail competitive pricing with ongoing promotions-grab yours from India's trusted exporter, manufacturer, and supplier.

Designed for Versatility and Superior Results

Our Cone Penetrometer for Morta is suitable for a wide range of laboratory and plant applications, making it ideal for professionals seeking accurate measurements in fresh mortar consistency. Its sturdy construction and manual precision ensure reliable testing results every time. The simple operation and durable materials offer a competitive advantage in terms of longevity and ease of use, guaranteeing you a marvelous experience in quality control and research processes across various sectors.

Comprehensive Policy and Secure Packaging for Peace of Mind

We offer a transparent sample policy for the Cone Penetrometer for Morta, with efficient order processing to ensure timely deliveries. Each penetrometer is carefully packaged for safe transport and promptly dispatched after quality checks. Certifications are available to confirm compliance with required standards. Our dedicated service ensures your equipment arrives in prime condition, ready for immediate laboratory use. Trust our seamless delivery process and secure packaging for a hassle-free purchasing experience.

FAQ's of Cone Penetrometer for Morta:

Q: How does the Cone Penetrometer for Morta determine the consistency of fresh mortar?

A: The penetrometer measures the depth of cone penetration into the mortar sample, which reflects the mortar's consistency. The graduated scale provides readings with 0.1 mm accuracy, ensuring precise consistency determination.

Q: What materials are used in the construction of this penetrometer?

A: It features a polished brass or steel cone, a cast iron base plate, and a powder-coated finish for added durability and aesthetic appeal. All materials conform to industry standards for prime performance and longevity.

Q: When should this equipment be used in the mortar testing process?

A: The Cone Penetrometer is used during fresh mortar preparation, prior to setting, to assess its workability and quality. Early measurement ensures mortar consistency meets project requirements.

Q: Where is the Cone Penetrometer for Morta typically installed or mounted?

A: This equipment is designed for bench-mounted installation in laboratory settings, providing stability and facilitating accurate testing during use.

Q: What certifications and testing standards does this device adhere to?

A: Our penetrometer is manufactured in accordance with IS: 2250 standards, and certifications confirming compliance can be provided as part of your order for quality assurance.

Q: How is the device packaged and delivered for safe arrival at my facility?

A: Each unit is securely packaged to prevent damage during transit. Once order processing is complete, the product is dispatched promptly and delivered to ensure it reaches you in perfect condition.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Concrete Testing Equipment' category

consolidation test apparatus (three gang) Price : 65200 INR/Set Minimum Order Quantity : 1 Features : Accommodates simultaneous testing of three samples, rigid construction, precise loading arrangement Specimen Size : 60 mm diameter x 20 mm height (standard); alternative rings optional Response Time : Immediate reading upon load application Humidity : Ambient laboratory conditions Usage : Geotechnical laboratory testing Application : Soil consolidation tests, determination of settlement characteristics of soils Number of Specimens : 3 Resolution : 0.01 mm (deformation measurement) Automation Grade : Manual Test Range : Applicable for most finegrained soils Accuracy : Dial gauge: 0.01 mm, Load accuracy: 1% Equipment Type : Three Gang Consolidation Test Apparatus Control Mode : Mechanical lever arm system Capacity : Each lever supports weights up to 9 kg (total load ~9 kg per sample) Machine Weight : Approximately 50 kg (per set) Mounting Type : Benchtop Measuring Range : Dependent on cell size and load frame capacity Test Speed : Manual, dependent on loading weight increments Temperature : Room temperature (typically 10C to 40C) Max Height : Approx. 350 mm (overall) Hardness : Robust mild steel frame Display Type : Mechanical dial gauge Test Width : Accommodates up to 3 consolidation cells side by side (multiple sample tests) Interface Type : Manual, mechanical interface Test Stroke : Up to 15 mm vertical displacement Power Supply : No electrical power required (manual operation) Port Size : Standard cell port size ~6 mm for drainage lines

Send Inquiry

porctor compaction test apparatus Price : 65000 INR/Set Minimum Order Quantity : 1 Features : Includes ISI marked compaction mould, base plate, collar, hammer Specimen Size : 100 mm or 150 mm diameter; 127.3 mm and 127.3 mm height respectively Response Time : Immediate upon compaction Humidity : Within lab environment, maximum 80% RH noncondensing Usage : Soil laboratory testing, educational & field quality control Application : Soil Compaction Testing in Civil Engineering Number of Specimens : One specimen per mould per test Resolution : Depends on external scale and balance used Automation Grade : Manual Test Range : Dry density vs. moisture content curve Accuracy : Corresponds to IS:2720 (Part VII & VIII); ASTM D698/D1557 standards Equipment Type : Compaction Test Apparatus Control Mode : Manual hammer compaction Capacity : Standard Proctor: 2.6 kg hammer; Modified Proctor: 4.9 kg hammer Machine Weight : Approx. 710 kg (including mould and accessories) Mounting Type : Tabletop Measuring Range : Lab compaction of soils for density/moisture determination Test Speed : Manual operation Temperature : Testing at 15C35C (room temperature) Max Height : Approx. 400 mm including hammer in raised position Hardness : Highgrade steel for hammer and mould Display Type : None; manual reading Test Width : Standard mould diameter: 100 mm or 150 mm Interface Type : Manual operation Test Stroke : Hammer drop height: 310 mm (Standard), 450 mm (Modified) Power Supply : Not Required (Manual) Port Size : Mould inner diameter: 100 mm or 150 mm

Send Inquiry

liquid limit device Price : 65000 INR/Set Minimum Order Quantity : 1 Features : Removable brass cup, adjustable cam, grooving tool included Specimen Size : As per IS:2720, ASTM D4318 (Approx. 40mm diameter, 10mm deep in cup) Response Time : Immediate manual Humidity : Ambient laboratory conditions Usage : Soil testing in laboratories Application : Determining liquid limit of soils Number of Specimens : Single specimen at a time Resolution : 1 drop Automation Grade : Manual Test Range : Up to liquid limit (LL) testing standards Accuracy : Complies with IS:2720, ASTM D4318 Equipment Type : Liquid Limit Device Control Mode : Manual crank Capacity : Standard laboratory sample Machine Weight : Approx. 2.5 kg Mounting Type : Bench top Measuring Range : Liquid limit of soil between 20% to 80% Test Speed : Manual operation Temperature : Room temperature (20C to 30C recommended) Max Height : Approx. 12 cm Hardness : Brass cuphigh strength, corrosion resistant Display Type : Manual (visual observation, no digital display) Test Width : Standard brass cup width 50 mm Test Stroke : 10 mm drop height (adjustable) Power Supply : Not required (manual device)

Send Inquiry

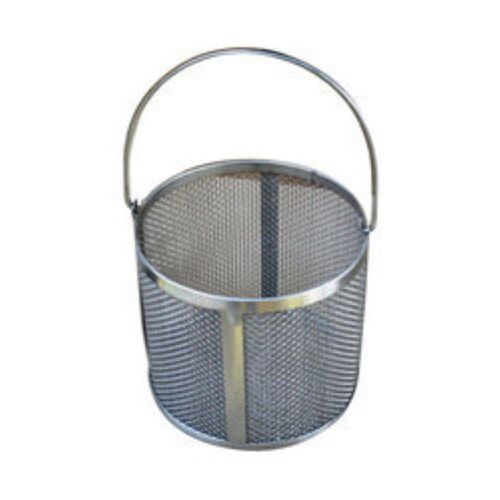

Density Basket Price : 80000 INR/Set Minimum Order Quantity : 1 Features : Corrosion resistant, rigid construction, lightweight, mesh design for rapid draining Specimen Size : Standard for aggregate testing (as per IS, ASTM standards) Response Time : Instant (manual process) Humidity : Suitable for standard laboratory humidity conditions Usage : Aggregate density and specific gravity testing Application : To determine the specific gravity/density of aggregates Number of Specimens : 1 at a time Resolution : Depends on attached balance Automation Grade : Manual Test Range : Suitable for aggregates and similar materials Accuracy : 0.01 g (when used with accurate weighing balance) Equipment Type : Density Basket Control Mode : Manual Capacity : Approx. 13 liters (depends on basket size) Machine Weight : Approx. 200300 grams (basket only) Mounting Type : None (basket is placed in water/beaker) Measuring Range : Standard aggregate sizes Test Speed : N/A (manual operation) Temperature : Suitable for standard laboratory temperature Max Height : Approx. 1014 cm Hardness : High; Stainless Steel construction Display Type : N/A (No display, manual)
