Dorry Abrasion Testing Machine

Name: Dorry Abrasion Testing Machine
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 65000 INR
Availability: InStock

65000 INR/Set

Get a Price/Quote

Product Details:

Power Supply 230 V AC, 50 Hz
Display Type Analog (Mechanical scale)
Response Time Immediate (manual reading)
Measuring Range 0 - 500 g abrasion loss
Frequency 50 Hz
Operating Voltage 230 V AC
Max Height Approx. 400 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Dorry Abrasion Testing Machine Price And Quantity

Minimum Order Quantity 1 Set
Price 65000 INR/Set

Dorry Abrasion Testing Machine Product Specifications

Measuring Range 0 - 500 g abrasion loss
Display Type Analog (Mechanical scale)
Power Supply 230 V AC, 50 Hz
Response Time Immediate (manual reading)
Test Speed 30 rpm
Hardness Cast iron components, hardness >40 HRC
Equipment Type Dorry Abrasion Tester
Resolution 1 g
Usage Determination of abrasion value of aggregates
Frequency 50 Hz
Operating Voltage 230 V AC
Max Height Approx. 400 mm
Test Stroke Variable, up to 50 mm
Application Aggregate/Abrasion testing for Building and Construction
Temperature Ambient (10C to 40C)
Test Width Standard Cup Width: 76 mm
Features Cast iron body, corrosion resistant, supplied with two diameter cups, slide caliper, counterweight
Mounting Type Tabletop
Interface Type N/A (Manual operation)
Accuracy 1 g
Capacity Load up to 30 kg
Humidity Ambient (<80% RH recommended)
Specimen Size Diameter 76 mm x 25 mm thick
Control Mode Manual
Number of Specimens Two at a time
Test Range Abrasion loss measurement (0-500 g)
Machine Weight Approx. 50 kg
Automation Grade Manual

Abrasion Disc Material High-grade cast iron
Wheel Diameter 200 mm (Typical for standard Dorry machine)
Safety Provided with safety cover
Sample Holder Material Brass/Cast Iron
Finishing Powder coated/painted
Compliance IS:2386 (Part IV), ASTM C131
Sample Preparation Complies with IS:2386 and BS:812
Alignment Adjustment Manual
Drive Type Geared motor drive
Accessories Included Weights, cups, calipers, cleaning brush, operation manual

Dorry Abrasion Testing Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Set Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Unlock a ravishing advantage in aggregate and construction material testing with the Dorry Abrasion Testing Machine! This first-rate marvel comes with a robust geared motor drive, triumphant high-grade cast iron abrasion discs, and a special safety cover - all powder coated for durability. Experience meticulous accuracy, measuring abrasion loss from 0-500 g with a 1 g resolution. Hot deal alert! Grab this essential piece of equipment at a special rate - purchase now and elevate your lab with precision and reliability. Accessories galore ensure hassle-free operation and compliance with IS:2386, ASTM C131, and BS:812 standards.

Versatile Features and Exceptional Application Media

The Dorry Abrasion Testing Machine excels in aggregate abrasion testing for the building and construction industry. Equipped with extra features like corrosion-resistant cast iron components, manual alignment adjustment, and comprehensive accessories, it ensures accurate results every time. This tabletop equipment type is tailored for rigorous usage, providing reliable manual operation for up to two specimens simultaneously. Its ambient operation range and conformity with international standards make it perfect for laboratories seeking consistent and dependable results.

Expansive Domestic Market and Effortless Purchase Experience

Serving as a manufacturer, exporter, and supplier across India, we offer competitive list prices and sample availability. Benefit from quick dispatch and timely delivery on every order. Flexible payment terms ensure a smooth transaction, whether acquiring single or bulk units. Domestic buyers can expect prompt service and reliable support, making this Dorry Abrasion Testing Machine an accessible asset for construction and testing professionals seeking uncompromised quality and efficiency.

FAQ's of Dorry Abrasion Testing Machine:

Q: How can I use the Dorry Abrasion Testing Machine for aggregate testing?

A: Simply prepare your specimens according to IS:2386 or BS:812 standards, secure them in the brass or cast iron sample holders, and operate the machine manually to determine abrasion loss, following the included operation manual for best practices.

Q: What is the benefit of the geared motor drive in this machine?

A: The geared motor drive ensures smooth, consistent rotation at 30 rpm, allowing accurate and repeatable abrasion testing, which leads to reliable results every cycle.

Q: When will I receive the machine after purchase?

A: We prioritize quick dispatch and swift delivery, ensuring that your Dorry Abrasion Testing Machine reaches you promptly, depending on your location within the main domestic market across India.

Q: Where can I use the Dorry Abrasion Testing Machine?

A: This machine is ideal for laboratory environments engaged in aggregate testing for construction materials. It operates effectively under ambient conditions (10C to 40C, <80% RH).

Q: What extra features does this abrasion tester offer?

A: It boasts a safety cover, corrosion-resistant cast iron body, supplied calibration weights and accessories, and compliance with IS:2386, BS:812, and ASTM C131 standards, ensuring both safety and operational precision.

Q: How accurate is the measurement of abrasion loss?

A: The machine delivers 1 g measurement accuracy and immediate manual reading for confident test results.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Concrete Testing Equipment' category

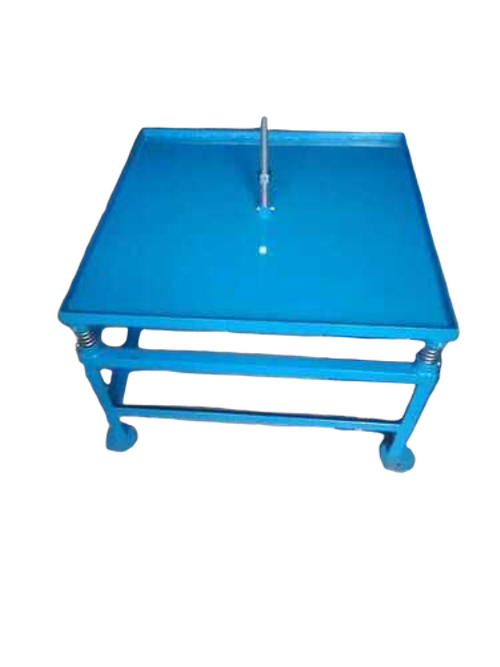

Vibrating Table Price : 15000 INR/Set Minimum Order Quantity : 1 Automation Grade : SemiAutomatic/Automatic Application : Tile, paver block, and concrete compaction Mounting Type : Floor Mounted Usage : Material compaction, Quality testing Number of Specimens : 14 per cycle depending on table size Specimen Size : Up to 600 x 600 mm Features : Variable frequency, antislip platform, powdercoated body, heavyduty motor Max Height : 700800 mm (table top) Equipment Type : Vibrating Table Temperature : 5C to 45C Machine Weight : Approx. 150250 kg Control Mode : Manual/Automatic Capacity : 100200 kg load Accuracy : 2% Response Time : <2 seconds Measuring Range : Frequency: 03000 RPM | Amplitude: 025 mm Resolution : 1 RPM or 0.1 mm Hardness : Platform surface hardness > HRC 40 Port Size : Standard 220V plug Test Range : Variable frequency and amplitude Humidity : Up to 90% RH noncondensing Test Speed : Up to 3000 vibrations/minute

Send Inquiry

Bulk density bucket Price : 6500 INR/Set Minimum Order Quantity : 1 Automation Grade : Manual Application : Determining bulk density of materials such as cement, sand, gravel, and other aggregates Mounting Type : Free standing Usage : Testing laboratory, Construction material analysis Number of Specimens : Single Specimen Size : Standard as per IS:2386 (PartIII) Features : Corrosionresistant, Removable handle, Polished finish, Durable construction Max Height : Approx. 240 mm Equipment Type : Bulk Density Apparatus / Bucket Temperature : Ambient Machine Weight : Approx. 2.5 kg Control Mode : Manual Capacity : 1 litre (approx.) Accuracy : 2% of reading Response Time : Immediate/manual Measuring Range : Depending on material filled in bucket Resolution : 0.01 kg Port Size : Standard 1 litre capacity Test Range : Bulk density of powder and granular materials Humidity : Ambient Test Speed : Manual

Send Inquiry

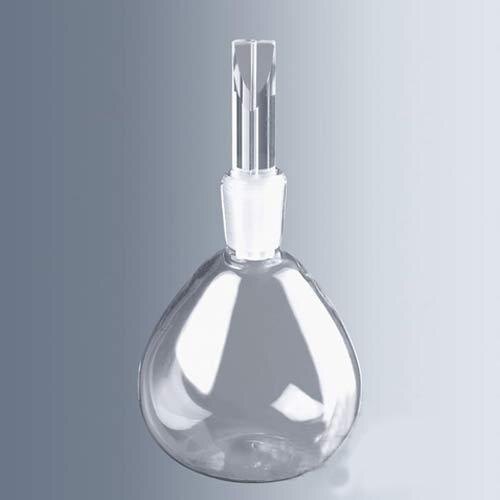

Specific Gravity Bottles Price : 5000 INR/Set Minimum Order Quantity : 1 Automation Grade : Manual Application : Determination of specific gravity of liquids Mounting Type : Free Standing Usage : For laboratory measurement Number of Specimens : 1 Specimen Size : Standard Bottle Size Features : Stoppered, mark for level indication, easy to handle, corrosion resistant Max Height : Varies by bottle size Equipment Type : Laboratory Glassware Temperature : Room Temperature Control Mode : Manual Capacity : 50 ml, 100 ml, 250 ml, 500 ml Accuracy : High, based on precision manufacturing Response Time : Immediate Measuring Range : Depends on balance capacity Resolution : Depends on balance used Hardness : Borosilicate Glass

Send Inquiry

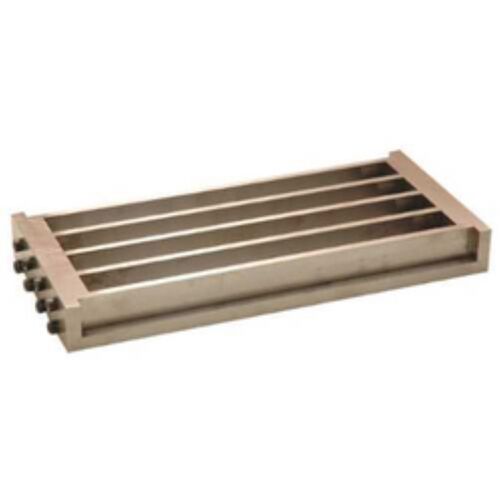

Shrinkage Bar Mould Price : 3000 INR/Set Minimum Order Quantity : 1 Automation Grade : Manual Application : Measurement of linear shrinkage in cement and concrete specimens Mounting Type : Table Top Usage : Laboratory testing of cement and mortar shrinkage Number of Specimens : 1 per mould Specimen Size : Length: 250 mm, Cross Section: 25 mm x 25 mm Max Height : Approx. 25 mm (crosssection) Machine Weight : Approx. 2.5 kg Hardness : Surface hardened for durability
