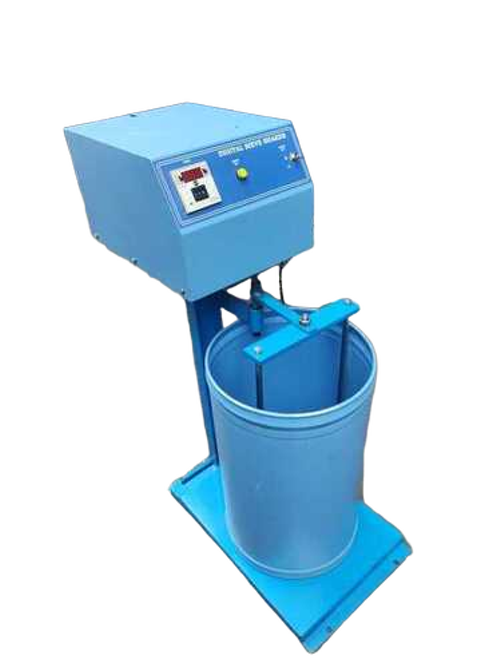

Wet Sieve Shaker

Name: Wet Sieve Shaker
Brand: V.K.SCIENTIFIC INSTRUMENTS
Price: 21500 INR
Availability: InStock

21500 INR/Set

Get a Price/Quote

Product Details:

Application Particle size analysis of fine powders and granular materials in wet condition
Features Stainless steel body, Corrosion resistant, Vibration resistant, Water inlet and drain
Specimen Size Depends on sieve diameter
Frequency 50 Hz
Temperature Up to 40C
Operating Voltage 230 V AC
Response Time Immediate
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Wet Sieve Shaker Price And Quantity

Price 21500 INR/Set
Minimum Order Quantity 1 Set

Wet Sieve Shaker Product Specifications

Features Stainless steel body, Corrosion resistant, Vibration resistant, Water inlet and drain
Application Particle size analysis of fine powders and granular materials in wet condition
Usage Laboratory/Quality Control
Operating Voltage 230 V AC
Temperature Up to 40C
Frequency 50 Hz
Specimen Size Depends on sieve diameter
Interface Type Manual/Timer
Max Height 600 mm (with sieve stack)
Response Time Immediate
Humidity Max. 85% RH
Measuring Range 20 micron to 3 mm
Capacity Up to 2 kg sample
Mounting Type Bench-top
Test Range Particle size 20 micron - 3 mm
Automation Grade Semi-Automatic
Control Mode Manual/Timer Control
Port Size Standard sieve diameter 200 mm/8 inch
Resolution 1 micron
Machine Weight Approx. 45 kg
Display Type Analog/Timer
Test Speed 1400 rpm
Test Stroke Vertical 25 mm
Accuracy 1 micron (depends on sieves used)
Equipment Type Wet Sieve Shaker
Number of Specimens 1 stack (up to 7 sieves)
Power Supply 230V AC, 50 Hz, Single Phase

Clamping Device Spring loaded for secure sieve stack
Noise Level Less than 80 dB
Safety Features Overload protection, Earth connection
Housing Material Stainless Steel / Mild Steel powder coated
Inlet/Outlet Connection Nozzle for water input and drain pipe
Timer Range 0-60 minutes
Drive Motor Heavy Duty Electric Motor 0.25 HP
Sieves Compatibility Suitable for 200 mm or 8-inch diameter test sieves
Shaking Mechanism Gyratory and vertical motion

Wet Sieve Shaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Set Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Procure this top-notch Wet Sieve Shaker crafted with stainless steel or powder-coated mild steel for unrivaled durability and performance. Engineered for affordable laboratory and quality control applications, it delivers noteworthy results with a heavy-duty 0.25 HP drive motor and a unique combination of gyratory and vertical motion. The spring-loaded clamping device provides a secure stack, while water inlets and drains ensure optimal wet sieving. With advanced safety features, efficient particle analysis from 20 microns to 3 mm, and compatibility with standard sieves, this shaker stands as an industry-leading choice.

Site of Application, Usage & Functional Scope

The Wet Sieve Shaker is a crucial apparatus for laboratories and quality control units requiring particle size analysis under wet conditions. Notably suitable for fine powders and granular materials, its usage spans research centers, industrial labs, and educational institutions. Its semi-automatic operation allows reliable, repeatable results for up to 2 kg of sample, further assisting in sample preparation and consistent material evaluation, all in a bench-top, space-efficient design.

Shipment, Delivery Time & Export Markets

Shipment of the Wet Sieve Shaker is prompt, with goods typically delivered within a pre-negotiated time frame based on order volume and destination. FOB port options are available across major Indian seaports, ensuring broad reach. Dedicated to international standards, the main export markets include Asia, Africa, and the Middle East, with efficient goods transport and secure packaging to guarantee that every order reaches clients worldwide in exceptional condition.

FAQ's of Wet Sieve Shaker:

Q: How does the Wet Sieve Shaker facilitate precise particle size analysis?

A: The shaker provides a combination of gyratory and vertical motion, ensuring efficient separation of particles in the 20 micron to 3 mm range with accuracy up to 1 micron, depending on sieve choice.

Q: What safety features are equipped in the Wet Sieve Shaker?

A: It includes overload protection and earth connection to enhance operational safety, and its noise levels are below 80 dB for a safer laboratory environment.

Q: Where can this equipment be installed for optimal use?

A: Designed as a bench-top unit, it is ideal for laboratory, research, and quality control settings optimizing space and workflow efficiency.

Q: What is the process for wet sieving using this equipment?

A: Samples are placed in a stack of 200 mm or 8-inch sieves, water is introduced via the nozzle, and controlled shaking separates particle sizes. The process is monitored using analog or timer display controls.

Q: Which types of specimens and sample sizes does the shaker accommodate?

A: It can process one sieve stack (up to 7 sieves) with up to 2 kg samples, accommodating various specimen sizes depending on the sieve diameter chosen.

Q: What benefits does the stainless steel or powder-coated construction provide?

A: This construction ensures lasting corrosion resistance, vibration resistance, and robust, long-term use even under demanding wet conditions.
